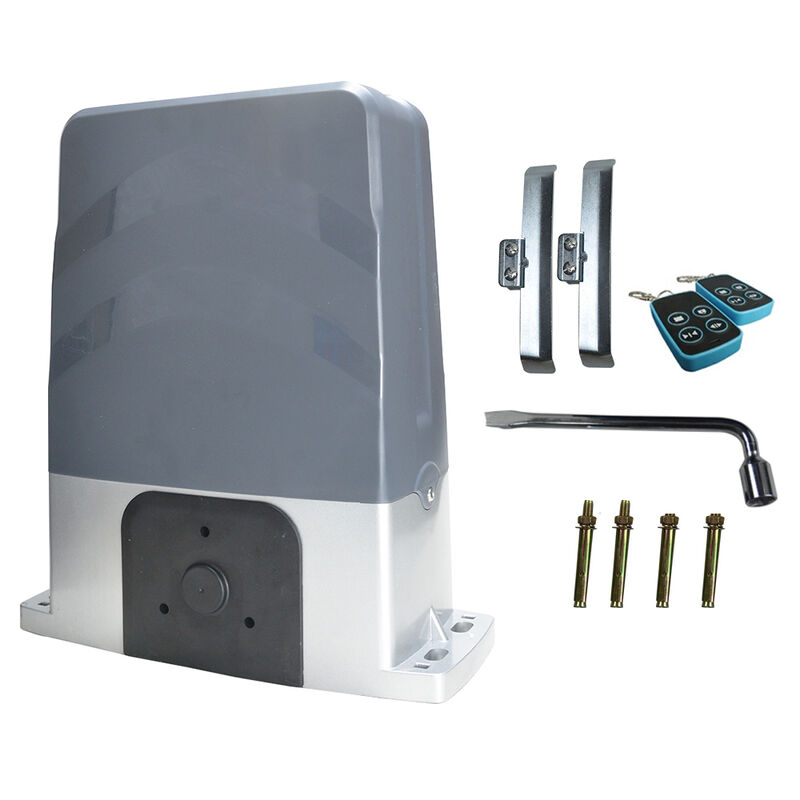

Automatic DC36V Solar System Sliding Gate Opener with 6000KG Capacity and IP65 Protection
  • Automatic DC36V Solar System Sliding Gate Opener with 6000KG Capacity and IP65 Protection
  • Automatic DC36V Solar System Sliding Gate Opener with 6000KG Capacity and IP65 Protection
Automatic DC36V Solar System Sliding Gate Opener with 6000KG Capacity and IP65 Protection

Automatic DC36V Solar System Sliding Gate Opener with 6000KG Capacity and IP65 Protection

Tempat asal Shenzhen, Cina.
Nama merek SINOMATIC
Sertifikasi CE/ ISO
Nomor model BG6000
Rincian produk
Kapasitas Pemuatan:
6000kg
Nilai Daya:
800W
Tegangan Keluaran:
DC 36V
Tegangan Masukan:
AC220V/110V (± 10%)
Kecepatan Gerbang:
15m/mnt
Kelas Perlindungan:
IP65
Rentang kendali jarak jauh:
Ruang terbuka 30~90 meter
Suhu kerja:
-30°C ~ +65°C
Sakelar batas:
Pegas / Magnetik
Modul gigi poros output:
Modul 4/19 gigi-gigi
Diameter Roda Gigi Poros Keluaran:
84mm
Kecepatan motorik:
1600RPM
Syarat Pembayaran & Pengiriman
Kuantitas min Order
Pesanan sampel diterima
Harga
negotiable
Kemasan rincian
Kotak/Kotak Kayu Lapis/Palet
Waktu pengiriman
5-10 hari kerja setelah pembayaran diterima
Syarat-syarat pembayaran
T/T,Western Union,Visa,MasterCard,PayPal,Stripe,Apple pay,Google pay,Alipay,Transfer Online
Menyediakan kemampuan
1.000 buah per bulan
Deskripsi Produk
Automatic Solar System DC36V Heavy Duty Sliding Gate Opener
Heavy-duty automatic sliding gate opener designed for industrial and commercial applications requiring robust performance and reliable operation. Compatible with sliding gates up to 3500KG, 4500KG, and 6000KG capacities.
Key Features
  • Anti-over travel: Slow initial power-on operation prevents inertia beyond limits with power-off protection requiring reset for opposite direction movement
  • Co-op Mode: Enables synchronous operation of two motors with identical control boards, including synchronized infrared, loop, and auto-close functions
  • Motor running time protection: Prevents extended operation during stroke failure by automatically extending maximum run time based on learned stroke duration
  • Adjustable auto-close: Configurable waiting period from 1 to 250 seconds to meet specific operational requirements
  • Soft start/stop: Adjustable slow speed strength and distance via potentiometer for smooth operation
  • Resistance rebound: Offers stop or rebound options when encountering obstacles during operation
  • Bluetooth ready: On-board slot designed for optional independent Bluetooth module
  • Internet integration: Direct compatibility with Internet controllers/cameras without additional wiring
Technical Specifications
Model BG3500 BG4500 BG6000
Capacity 3500kg 4500kg 6000KG
Torque 80N.m 107N.m 144N.m
Input Voltage AC 220V/110V ± 10% AC 220V/110V ± 10% AC 220V/110V ± 10%
Output Voltage DC 36V DC 36V DC 36V
Rated Power 450W 600W 800W
Motor Speed 1600rpm 1600rpm 1600rpm
Gate Speed 15m/min 15m/min 15m/min
Fuse DC 40A DC 40A DC 40A
Remote Control Range Open space 30~90 meters Open space 30~90 meters Open space 30~90 meters
Temperature -30° C ~ +65° C -30° C ~ +65° C -30° C ~ +65° C
Relative Humidity <60% <60% <60%
Limit Switch Spring / Magnetic Spring / Magnetic Spring / Magnetic
Noise ≤60dB ≤60dB ≤60dB
Protection Class IP 65 IP 65 IP 65
Module of Output Shaft Gear Module 4/19-Tooth Gear Module 4/19-Tooth Gear Module 4/19-Tooth Gear
Output Shaft Gear Diameter 84mm 84mm 84mm
Packaging Details
Packaging Materials Foam inside, carton outside
Package Dimensions 55*50*40 cm
Gross Weight 30KG
Delivery Methods By sea, air, or express (UPS, DHL, FedEx, TNT, special line express)
Safety Protection and Precautions
  1. Follow installation instructions carefully to prevent personal injury or property damage
  2. Retain the manual for future reference
  3. Manufacturer is not responsible for consequences from improper use or operation beyond specified purposes
  4. Do not install in areas with flammable/explosive materials or excessive smoke
  5. Manufacturer is not responsible for issues caused by neglecting precision component requirements during installation
  6. Always disconnect power and verify grounding before system maintenance
  7. Using non-approved components voids responsibility for safety or operational issues
  8. Do not modify system components
  9. Installers must thoroughly explain operating procedures and emergency protocols to users
  10. Restrict access to installation areas and eliminate potential hazards
  11. Keep remote controls away from children
  12. Only qualified professionals should perform repairs or adjustments
  13. Regularly inspect installation for wear, damage, or imbalance - do not operate if repairs are needed
